Caterpillar TH406 Telehandler Parts Manual PDF Download
Download the complete Caterpillar TH406 Telehandler Parts Manual, an essential factory reference designed to help equipment owners, technicians, workshops, and parts departments quickly identify and order the correct replacement components for the TH406 Telehandler.
This illustrated parts catalog contains detailed exploded-view diagrams, component breakdowns, reference numbers, and original Caterpillar part numbers covering every major system of the machine. It provides accurate information for maintenance, repairs, rebuilds, and parts identification.
📋 Manual Details
| 📦 Product Name | Caterpillar TH406 Telehandler Parts Manual |
| 📖 Manual Type | Illustrated Parts Catalog / Parts Manual |
| 🚜 Model | Caterpillar TH406 Telehandler |
| 🔢 Publication Number | 31200369 |
| 🏷️ Applicable Serial Number | S/N TDE00100 & After S/N TDF00100 & After S/N TBX00100 & After S/N TBY00100 & After |
| 📄 Total Pages | 440 Pages |
| 💾 File Size | 43 MB |
| 🌐 Language | English |
| 📂 Format | |
| 🔍 Searchable | Yes |
| 🖨️ Printable | Yes |

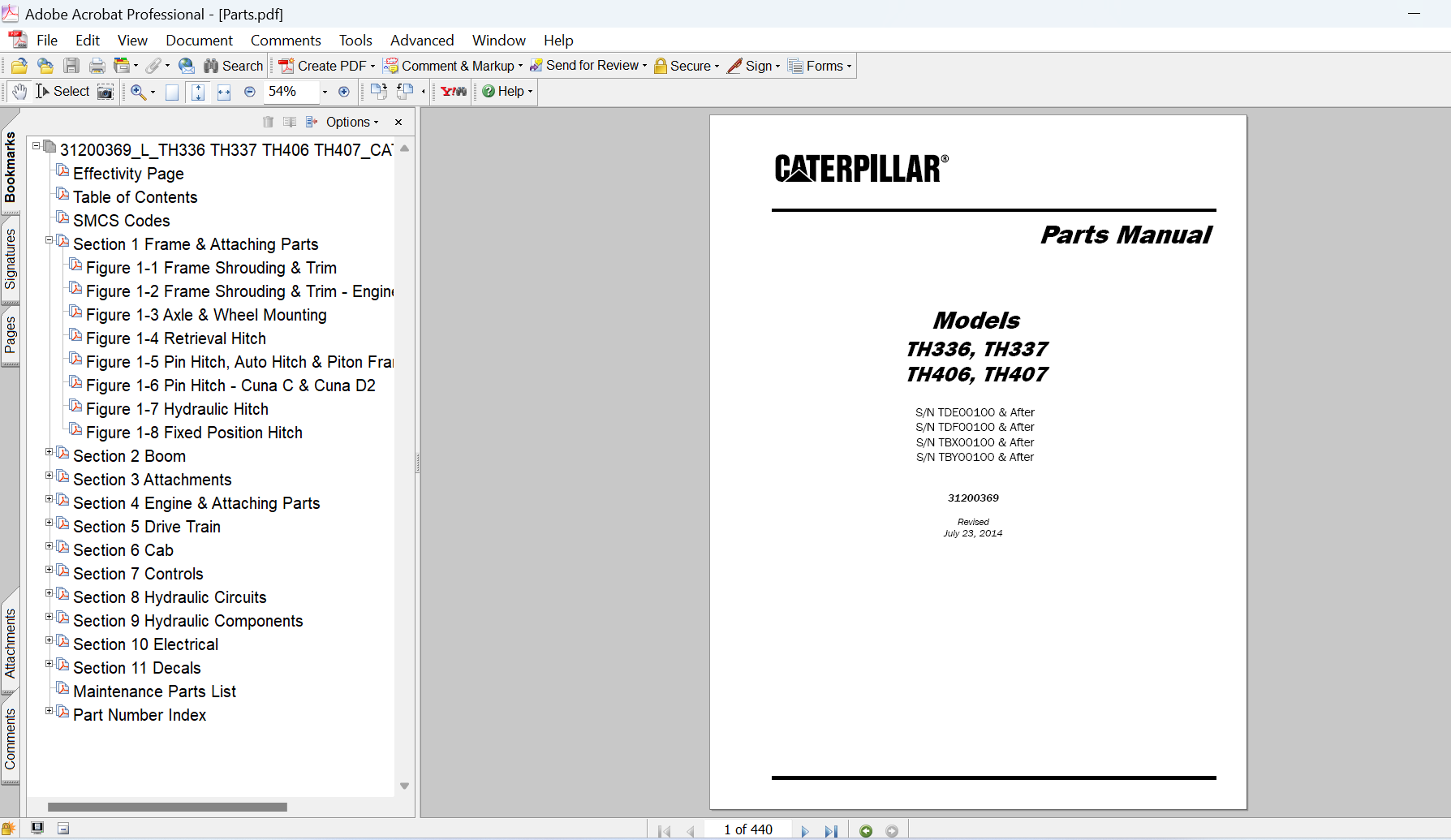

| 📑 Contents | Exploded Views, OEM Part Numbers, Parts Identification, Assemblies & Components |
| 🛠️ Covered Systems | Frame, Boom, Attachments, Engine, Drive Train, Cab, Controls, Hydraulics, Electrical & Decals |
| 👨🔧 Suitable For | Technicians, Parts Departments, Workshops & Equipment Owners |
| ⚡ Delivery Method | Instant Digital Download |
| 📥 Download Access | Available Immediately After Purchase |
Manual Coverage
- ✔ Frame and attaching parts
- ✔ Frame shrouding and trim components
- ✔ Boom assemblies and boom sections
- ✔ Quick coupler and attachment systems
- ✔ Carriage assemblies and fork components
- ✔ Bucket and material handling attachments
- ✔ Engine installation and engine components
- ✔ Fuel system components
- ✔ Cooling system assemblies
- ✔ Air intake and exhaust components
- ✔ Front and rear axle assemblies
- ✔ Differential and final drive components
- ✔ Drive shaft assemblies
- ✔ Brake system components
- ✔ Wheel and tire assemblies
- ✔ Cab assemblies and interior components
- ✔ Seat, heater and air conditioning parts
- ✔ Steering system components
- ✔ Hydraulic circuits and hydraulic components
- ✔ Hydraulic pumps and control valves
- ✔ Lift, tilt and extend cylinder components
- ✔ Electrical system assemblies
- ✔ Wiring harnesses and switches
- ✔ Lighting system components
- ✔ Instrument panel and monitoring system parts
- ✔ Safety decals and warning labels
- ✔ Maintenance parts listings
- ✔ Complete Caterpillar part number index
Features
- ✔ Official Caterpillar Parts Manual
- ✔ Detailed exploded-view illustrations
- ✔ OEM part numbers and descriptions
- ✔ Fast and accurate parts identification
- ✔ Searchable and printable PDF format
- ✔ Ideal for workshops, mechanics and fleet operators
- ✔ Instant digital download
This manual is specifically for the Caterpillar TH406 Telehandler and is an invaluable resource for identifying genuine replacement parts, planning repairs, and maintaining equipment reliability.
